Quick answer: A capstone project presentation is a graded 10 to 20-minute talk that shows the problem you tackled, what you built or did, the results with their baseline and sample size, the limitations and what should happen next. Use about 12 slides, give method and results roughly half the time, and map every slide to your programme's rubric.
This guide covers the three versions students search for: the university capstone or senior project in the US and elsewhere, the AP Capstone presentations scored in AP Seminar and AP Research, and the final year project presentation and viva used in Indian engineering colleges. It gives the official AP timings checked today, minute-by-minute plans for 10, 15 and 20-minute slots, a 12-slide outline, a rubric-to-slide map, a team hand-off plan and one fictional nursing capstone worked through with full arithmetic. If you are defending a master's or PhD thesis instead, our thesis defense presentation guide is the better fit.
In short
- LengthSet by your programme. Official AP examples: team presentation and defense 8–10 minutes, individual presentation 6–8 minutes, AP Research presentation and defense 15–20 minutes.
- SlidesAbout one slide per main minute of talk: 10 for a 10-minute slot, 12 for 15 minutes, 14 for 20 minutes, plus backup slides after the end.
- Time splitMethod and results take about half; problem and background a fifth; limitations, implications and the close the rest, with a 5–10% buffer.
- TitlesEvery slide title states a finding ("Falls dropped from 3.66 to 2.79 per 1,000 patient-days"), not a topic ("Results").
- GradingBuild backwards from the rubric. Q&A can carry a large share: one Indian college's presentation rubric gives questions 30 of 100 marks.
- ExampleA fictional four-student nursing team: 4 × 4.5 minutes + 2 minutes of buffer = 20 minutes, falls down 23.8% on 25 falls in total, and a limitations slide that says why that is an early signal.
What a capstone project presentation is, and what graders score
A capstone project presentation is the oral part of the final project in a degree or high-school programme, where a student or team presents a problem, the work done on it and the evidence that the work succeeded, then answers questions from faculty and sometimes an industry sponsor. Graders score two things at once: the project itself and the student's ability to communicate it.
The communication half is explicit in most published criteria. ABET lists "an ability to communicate effectively with a range of audiences" as a required student outcome for accredited engineering programmes (ABET, Criteria for Accrediting Engineering Programs, 2026–2027). College Board's AP Capstone is built on two courses that teach research, argument and presenting, and the presentations in both are scored with an AP rubric (College Board, AP Capstone). An Indian autonomous engineering college's published project scheme marks the presentation separately from the report and the technical paper (IARE, B.Tech Project Work Evaluation Guidelines).
That is why a capstone talk is not a shorter version of your report. The report proves the work; the presentation proves that you understand it well enough to explain it in a fixed time and defend it under questions. Every recommendation in this guide follows from that difference.
Capstone vs thesis vs senior project vs final year project
A capstone presentation shows what you built, changed or found on an applied problem, a thesis defense defends an original research contribution the committee has already read, a high-school senior project presentation emphasises process and reflection, and an Indian final year project presentation is one stage in a sequence of internal reviews ending in a final presentation and viva before a review committee.
| Format | Who presents | Who grades | What carries the most weight |
|---|---|---|---|
| University capstone | Often a team of 3–5, final year | Faculty, sometimes the sponsor or client | Whether the solution meets its requirements or improved the outcome, shown with evidence |
| Thesis defense | One master's or PhD candidate | A committee that has read the thesis | The research contribution and the methods behind it (see the thesis defense guide) |
| High-school senior project | One student, sometimes a pair | Teachers, sometimes a community panel | The question, the process, what was learned and reflection on it |
| AP Seminar / AP Research | A team of 3–5 (Seminar team task) or one student | The AP teacher, plus trained evaluators for AP Research | Argument, evidence and the oral defense, scored with AP rubrics |
| Final year project (India) | A small batch of B.Tech/BE students | Supervisor and department reviews, then a review committee, often with an external examiner | Content, results, presentation skills and the viva questions |
The practical consequence: a thesis defense can skip context because the committee has read the document, while a capstone audience often includes people who have not, such as a sponsor, classmates or a second marker. A capstone deck therefore spends more of its first two minutes on the problem and less on literature, and more of its middle on what was actually built or done. If your capstone is closer to a research paper, our guide to turning a research paper into a conference presentation covers the academic-talk conventions in more depth.
How long is a capstone presentation? Official and typical slots
A capstone presentation usually runs 10 to 20 minutes plus questions, but the only length that counts is the one in your programme's brief. College Board publishes exact AP Capstone timings: 8–10 minutes for the AP Seminar team presentation and defense, 6–8 minutes for the individual presentation, and 15–20 minutes for the AP Research presentation and oral defense.
| Programme | Presentation slot | Questions | Who sets it |
|---|---|---|---|
| AP Seminar, team | 8–10 minutes, presentation and defense together; team of 3–5 | Inside the 8–10 minutes | College Board; scored by your teacher |
| AP Seminar, individual | 6–8 minutes | Oral defense: 2 questions from your teacher | College Board; scored by your teacher |
| AP Research | 15–20 minutes, presentation and oral defense | 3–4 questions from a panel and your teacher | College Board; scored with an AP rubric |
| University capstone (example) | 15 minutes per team at one engineering showcase | Teammates not speaking stand ready to answer | Portland State ME 493 brief, 2018 |
| Your programme | Check the brief; 10, 15 and 20 minutes are common | Often 5–10 minutes after the talk | Your department or course leader |
The AP numbers come from College Board's student assessment pages for AP Seminar and AP Research. For the 2026–27 year, both pages list the performance-task submission deadline as 30 April 2027 at 11:59 p.m. ET, and the AP Seminar end-of-course exam on 10 May 2027. In AP Seminar the team presentation is worth part of a 20% component and the individual presentation and defense part of a 35% component; in AP Research the presentation and oral defense together are worth 25% of the score.
Two rules hold whatever the slot. First, rehearse to about 90% of the time limit, because a live run is almost always slower than a rehearsal. Second, where questions sit inside the slot, as in the AP Seminar team task, plan the talk for the low end of the range so the defense is not squeezed. The slide count follows from the minutes, at roughly one slide per minute; our slides-per-minute guide explains when to go faster or slower.
Minute-by-minute timing for a 10, 15 and 20-minute capstone
In a capstone slot, give about half the minutes to what you did and what happened (method and results), a fifth to the problem and background, about a sixth to limitations and implications, and keep a buffer of 5–10% for transitions, a demo hiccup or a slow start. The table below turns that rule into minutes you can rehearse against.
| Block | 10-minute slot | 15-minute slot | 20-minute slot | Slides at 20 min |
|---|---|---|---|---|
| Opening claim, problem, why it matters | 1.5 | 2 | 3 | 3 |
| Background and evidence | 1 | 1.5 | 1.5 | 1 |
| Method or design (what you built or did) | 2 | 3.5 | 4.5 | 3 |
| Results and evaluation | 3 | 4 | 4.5 | 3 |
| Limitations and implications | 1.5 | 2 | 3.5 | 2 |
| Conclusion and the ask | 0.5 | 1 | 1 | 1 |
| Buffer (transitions, demo) | 0.5 | 1 | 2 | 0 |
| Total | 1.5 + 1 + 2 + 3 + 1.5 + 0.5 + 0.5 = 10 | 2 + 1.5 + 3.5 + 4 + 2 + 1 + 1 = 15 | 3 + 1.5 + 4.5 + 4.5 + 3.5 + 1 + 2 = 20 | 3 + 1 + 3 + 3 + 2 + 1 = 13, + questions slide = 14 |
Method plus results is 5 of 10 minutes (50%), 7.5 of 15 (50%) and 9 of 20 (45%, rising to 50% once the buffer is spent on the demo or results). The 20-minute column gives limitations more room than the shorter slots on purpose: with more time, examiners expect you to discuss what the results do not show, and that discussion is where the strongest Q&A answers come from.
Use the table in rehearsal, not just in planning. Write the cumulative time at the end of each block on your cue cards (at 20 minutes: 3:00, 4:30, 9:00, 13:30, 17:00, 18:00) and check the clock at each one. If you are more than 30 seconds behind at the 9:00 mark, drop one method detail rather than rushing the results.
The 12-slide capstone presentation outline, slide by slide
A 15-minute capstone presentation fits 12 slides: title and claim, problem, why it matters, background, objective, method or design, results, evaluation, limitations, implications, conclusion, and a closing slide for questions. For a 20-minute slot, add a second method slide and a second results slide (14); for a 10-minute slot, merge background into the problem slide and evaluation into the results slide (10).
| # | Slide | What it must show | Example title (fictional nursing capstone) |
|---|---|---|---|
| 1 | Title and claim | Project name, team, programme, date, and the one-sentence result | "Hourly rounding cut falls on 4 West by about a quarter in its first three months" |
| 2 | Problem | The setting, the baseline number and who is affected | "4 West recorded 18 falls in six months, 3.66 per 1,000 patient-days" |
| 3 | Why it matters | Cost, harm or opportunity for the sponsor or users | "Most falls happened when patients got up alone at night" |
| 4 | Background | What is already known, in one slide, with sources | "Published hospital rates run 3–5 falls per 1,000 bed-days; our unit sat inside that range" |
| 5 | Objective | The question or requirement in measurable terms | "Goal: fewer falls per 1,000 patient-days within three months, with no extra staff" |
| 6 | Method or design | What you built or changed, and why this option | "Nurses checked pain, position, toileting and possessions every hour from 06:00 to 22:00" |
| 7 | Results | Baseline, after, the denominator and n | "Falls dropped from 3.66 to 2.79 per 1,000 patient-days" |
| 8 | Evaluation | Did the method run as planned (process measure), against requirements | "Staff documented 84% of scheduled rounds" |
| 9 | Limitations | What the result cannot show, stated by you first | "25 falls in total is too few to call the drop significant" |
| 10 | Implications | What should happen next and who decides | "Keep rounding and review 12 months of data in July 2027" |
| 11 | Conclusion | The claim from slide 1, repeated with the key number | "An hourly check reduced falls without new staff; the unit should keep it" |
| 12 | Thank you and questions | Team names, contact, the one-line claim, a QR code to the report if allowed | "Questions: hourly rounding on 4 West" |
Three details make the outline work in the room. Slide 1 states the result, not just the topic, so a grader who drifts for a minute still knows your central message. Slide 5 turns the objective into something measurable, which is what lets slides 7 and 8 prove it. And slide 12 keeps your claim visible during questions instead of a bare "Thank you", which our guide on how to end a presentation explains in detail. For the first 30 seconds before slide 2, the opening patterns in how to start a presentation apply directly.
Write slide titles as claims, not labels
A claim title is a full-sentence slide title that states what the slide proves, such as "Falls dropped from 3.66 to 2.79 per 1,000 patient-days", instead of a one-word label such as "Results". Claim titles let a grader follow your argument from the titles alone and make the central message visible on every slide.
Capstone briefs recommend it too. Portland State's 2018 ME 493 capstone showcase brief tells teams that the slide title should unambiguously say what is important about the slide, and that its list of content elements should not be used as slide titles (Portland State University, ME 493 Capstone Design Showcase). The method itself is described on the Assertion-Evidence site at Penn State.
| Label title | Claim title | Why the claim scores better |
|---|---|---|
| Results | Falls dropped from 3.66 to 2.79 per 1,000 patient-days | States the finding, the unit and the direction in one line |
| System design | A two-stage filter met the 40 dB noise requirement with 6 dB to spare | Ties the design to a requirement the grader can check |
| Market analysis | Three of five interviewed clinics would switch for a 15% lower fee | Gives the evidence base (5 interviews) along with the conclusion |
| Limitations | Three months of data cannot separate rounding from seasonal change | Shows you understand the boundary of your own result |
| Future work | The unit should keep rounding and review 12 months of data in July 2027 | Turns an afterthought into a recommendation with a date |
A quick test: read only your slide titles aloud, in order. If they tell the story of the project with its main numbers, the deck is organised. If they read like a table of contents, rewrite them before you touch the design.

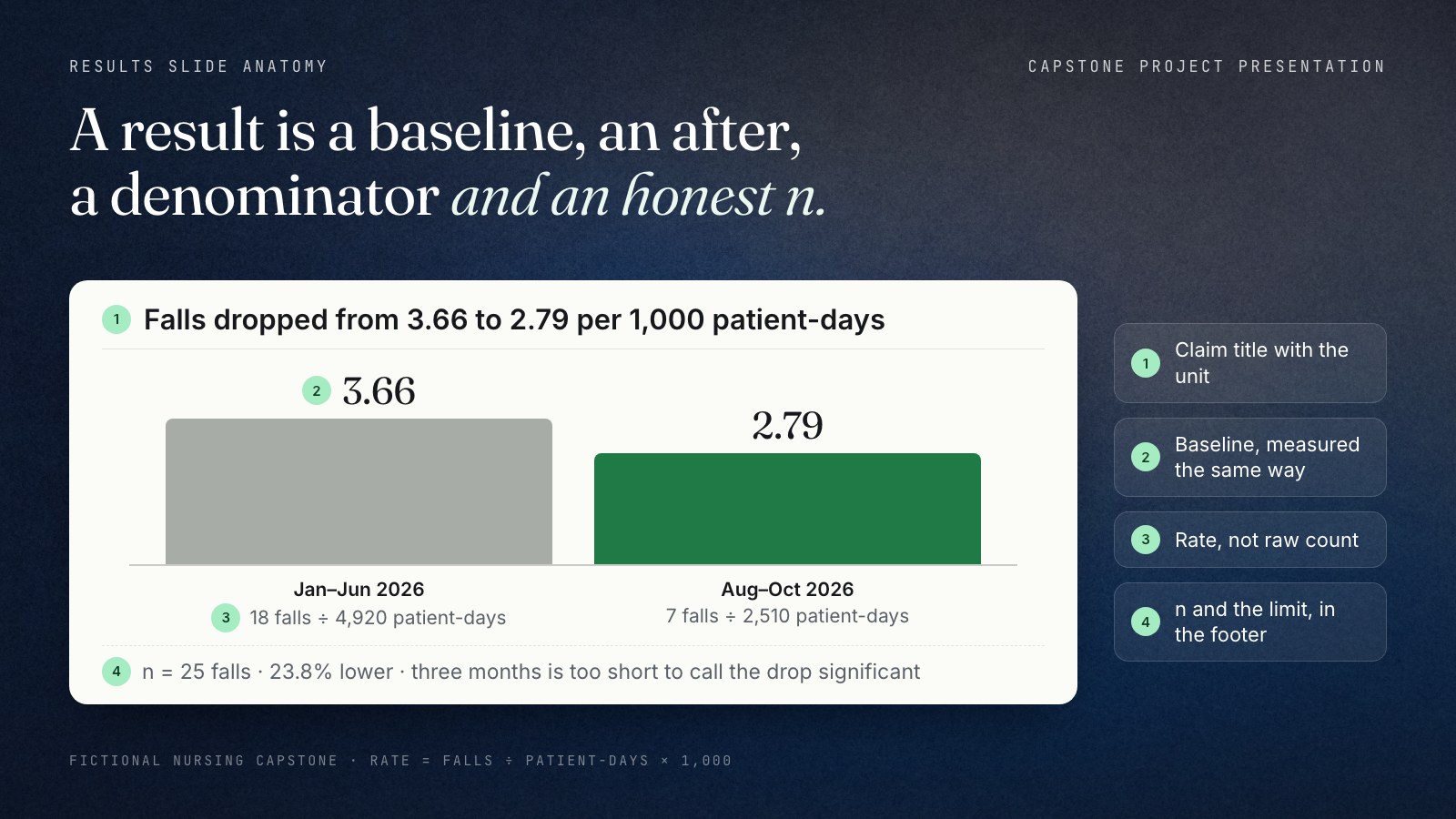

Results slides that survive questions
A results slide survives questions when it shows four things: the baseline, the result after the change, the denominator that makes the two comparable, and the honest size of the sample. Missing any one of the four is the most common reason a capstone's first question is uncomfortable.
- Baseline. The value before you started, measured the same way. "Falls dropped" means nothing until the room knows from what.
- After. The value at the end, with its period. Name the months.
- Denominator. A rate, not a raw count, whenever the exposure changes. The fictional unit below recorded 18 falls in six months and 7 in three; only rates per 1,000 patient-days make those comparable. AHRQ's patient safety network describes hospital fall rates in this form, citing studies that find 3–5 falls per 1,000 bed-days (AHRQ PSNet, Falls primer).
- n. The number of events, users, tests or interviews behind the result, written on the slide. A 23.8% fall built on 25 events is a different claim from the same percentage built on 2,500.
Show the arithmetic once, small, at the foot of the slide or in a backup slide: 18 ÷ 4,920 × 1,000 = 3.66 and 7 ÷ 2,510 × 1,000 = 2.79. Graders rarely check it live, but seeing it tells them you can. For chart choice, labels and how to highlight the comparison that matters, our guide on how to present data covers the rules in full.
Engineering and computer-science capstones use the same four parts with different words: the requirement (baseline), the measured performance (after), the test conditions (denominator) and the number of trials (n). "Battery life 11.2 hours against a 10-hour requirement, mean of 5 runs at 25 °C" is a complete results line.
The limitations slide, and why examiners reward it
A limitations slide states, in your own words and before anyone asks, what your result cannot show and what would be needed to show it. Examiners reward it because it demonstrates the judgement a capstone exists to test, and because it turns the hardest question of the Q&A into one you have already answered.
Write each limitation as three parts: the limit, what it means for the claim, and the fix. For the fictional nursing project:
- Small numbers. 25 falls in total (18 before, 7 after) is too few to call the drop statistically significant; treat it as an early signal and keep collecting monthly data.
- Short follow-up. Three months after the change cannot separate rounding from seasonal patterns; compare 12 months before with 12 months after in July 2027.
- No comparison unit. No other ward was measured over the same period; a second unit without rounding would show whether hospital-wide factors moved too.
Three limitations is enough. More than four starts to read as doubt about the whole project; fewer than two suggests you have not looked.

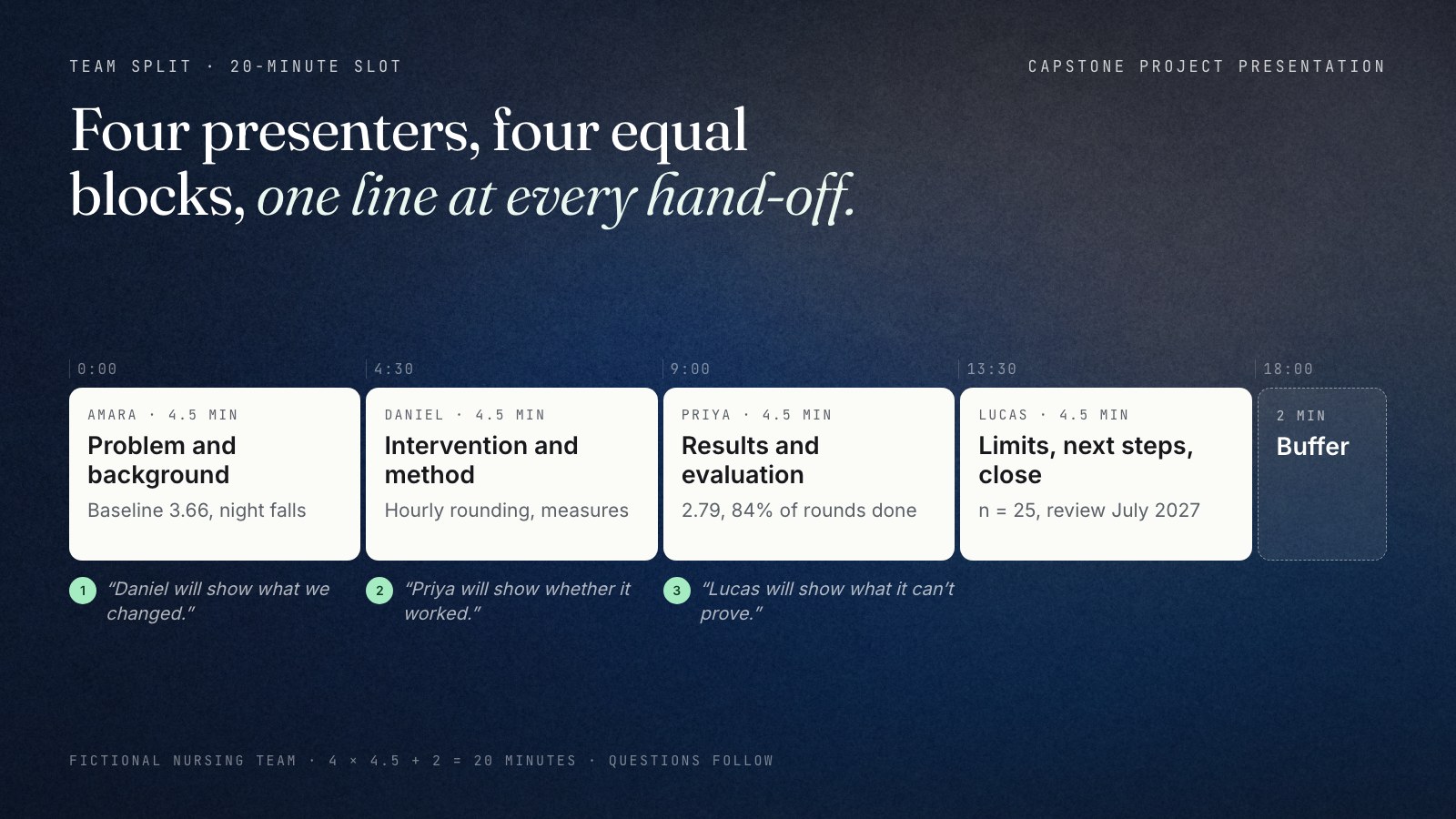

Team capstones: equal time, hand-off lines and who answers what
In a team capstone, give each presenter roughly equal time on a block they own, script one-sentence hand-offs between speakers, and agree before the day who answers which kind of question. Unequal speaking time is easy for graders to spot and, where individuals are scored, it can cost the quieter members marks.
The hand-off line names the next speaker and the next question: "So the falls were real and concentrated at night. Daniel will show what we changed." It takes five seconds, removes the awkward pause, and doubles as signposting, which the organisation criterion of most rubrics rewards. Write all hand-off lines into the shared script and rehearse them as much as the content.
For questions, divide by topic, not by who presented: one person owns method questions, one owns data and statistics, one owns the sponsor or clinical context, and one acts as the moderator who repeats each question and passes it on. Portland State's showcase brief makes a related rule explicit: everyone not presenting must be at the front of the room, ready to answer. In AP Seminar, the team presentation and defense share one 8–10 minute slot, so with four students that is about 2 minutes each, and the defense has to fit inside the same limit.
Demos and prototypes: live vs recorded, and the backup
Run a live demo only when the live behaviour is the point and you have rehearsed it on the room's equipment; otherwise play a recorded clip of 60–90 seconds, and in both cases keep a screenshot slide that tells the same story in 30 seconds if anything fails. A demo should take no more than about a quarter of your slot.
| Option | Use it when | Risk | Backup |
|---|---|---|---|
| Live demo | Real-time response is the claim (a robot, a control loop, an app's speed) | Network, power, room projector, nerves | Recorded clip ready in another tab, plus a screenshot slide |
| Recorded clip | The behaviour takes longer than a minute or depends on conditions you cannot recreate | Looks rehearsed; audio may not play | Captions in the video; a screenshot slide with the three key frames |
| Physical prototype | A showcase with tables after the talks | Hard to see from the back of a room | A photo slide with labelled parts and the key measurement |
| Screenshots only | Short slots (10 minutes or less) or software that needs logins | Less memorable | Offer the live version at the showcase table or in Q&A |
Whatever the format, put the result of the demo in the slide title ("The app answers in under 2 seconds on a 4G connection") so the claim survives even if the video does not play.

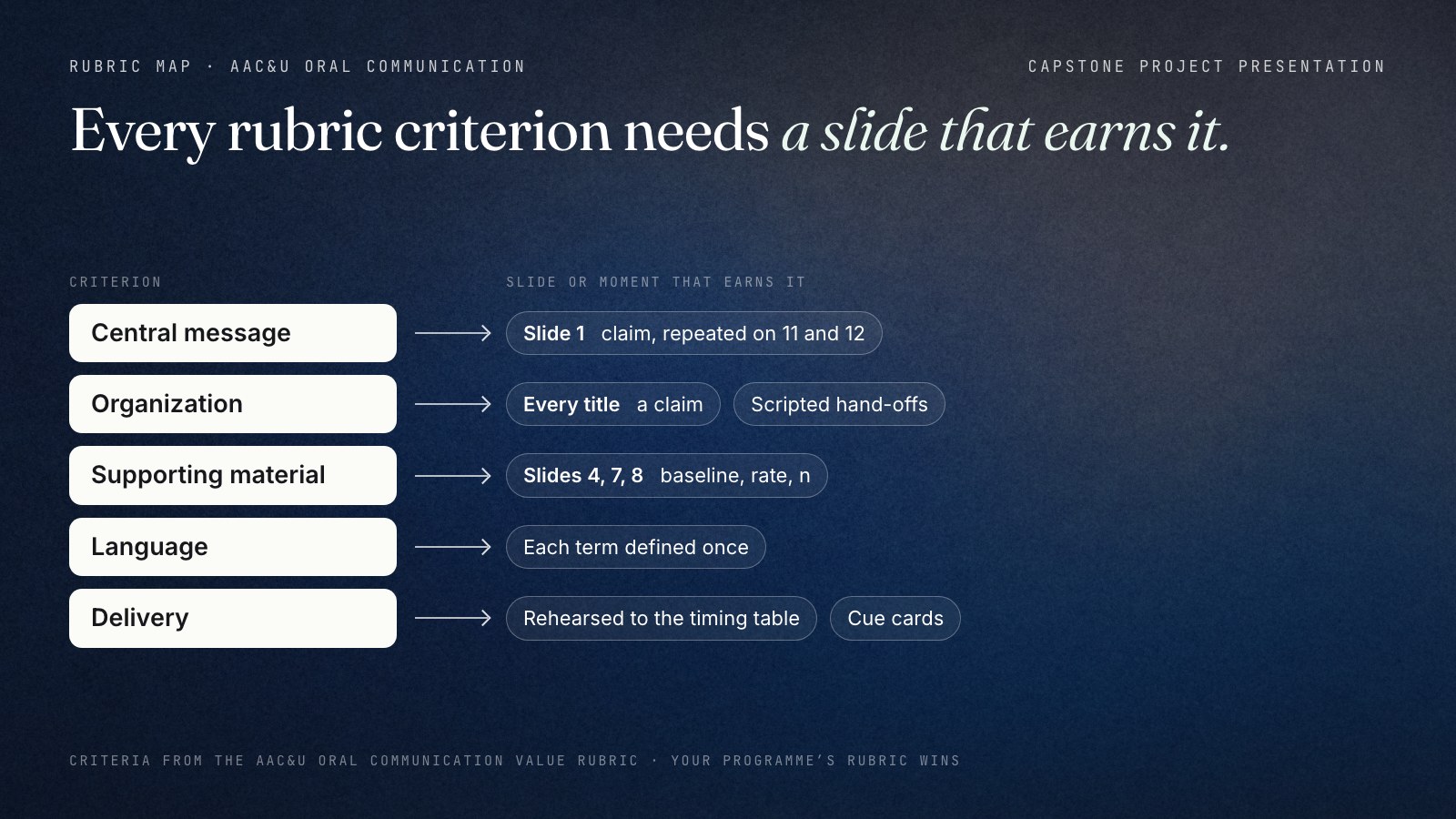

Map your slides to the rubric
Mapping slides to the rubric means taking each criterion your graders will score and naming the slide and the moment that earns it. When your programme publishes no rubric, the AAC&U Oral Communication VALUE rubric is a widely used public reference: it scores organisation, language, delivery, supporting material and central message on four levels, the highest of which is named "Capstone".
AAC&U, the American Association of Colleges and Universities, publishes the rubric free and states that the VALUE rubrics are intended for institutional assessment rather than grading individual students, so many programmes adapt it into their own forms (AAC&U, Oral Communication VALUE Rubric). Its levels run Capstone (4), Milestones (3 and 2) and Benchmark (1). Your programme's rubric always wins over this one; use the table below to map whichever rubric you have.
| Criterion (AAC&U) | What the top level asks for, in short | Where graders look | Slide that earns it |
|---|---|---|---|
| Central message | Precisely stated, repeated, memorable and strongly supported | The first 60 seconds and the last slide | Slide 1 claim, repeated on slides 11 and 12 |
| Organization | Clear introduction, conclusion, sequence and transitions that make the talk cohesive | Signposting and hand-offs | Claim titles on every slide; scripted team hand-off lines |
| Supporting material | A variety of evidence that significantly supports the talk and your credibility | Results and background | Slides 4, 7 and 8 with baseline, denominator, n and sources |
| Language | Choices that are compelling and appropriate to the audience | Jargon and definitions | Define each technical term once, on the slide where it first appears |
| Delivery | Posture, gesture, eye contact and voice that make the talk compelling | The whole talk, especially timing | Rehearsed to the timing table; cue cards, not a script read from the slides |
Other published rubrics weight things differently, which is why reading yours matters more than any general advice. IARE, an autonomous engineering college in Hyderabad, scores its B.Tech project presentation out of 100: engagement 20, presentation skills 30, content 20, and question-and-answer 30 (IARE guidelines). Under that scheme the Q&A carries as many marks as presentation skills (30 each) and more than the content of the slides (20), so an hour spent rehearsing answers is worth more than an hour spent on animations.
Capstone Q&A: the 10 questions examiners ask and a 3-part answer
Capstone examiners ask predictable questions about scope, method, evidence, limits and your own contribution. Prepare an answer to each of the ten below and answer every question in three parts: the direct answer in one sentence, the evidence or slide that supports it, and what it means for the project.
| # | Question | Where the answer lives |
|---|---|---|
| 1 | Why did you choose this problem? | Slides 2–3: the baseline and who it affects |
| 2 | Why this approach and not the obvious alternative? | Slide 6, plus a backup slide comparing two or three options |
| 3 | How did you measure success? | Slide 5 objective and slide 7 measure |
| 4 | How big was your sample, and is the result significant? | Slide 7 footer (n) and slide 9 limitations |
| 5 | What else could explain the result? | Slide 9, and a backup slide on other changes in the period |
| 6 | What went wrong, and what would you do differently? | One prepared example per presenter |
| 7 | What did you personally contribute? | The team timeline: each presenter owns a block |
| 8 | How would this scale, or cost to run? | Slide 10, plus a backup slide with the numbers |
| 9 | How does this connect to what you studied? | One sentence each, linking to named courses or standards |
| 10 | What should happen next, and who decides? | Slides 10–11: the recommendation and the date |
An example of the 3-part answer to question 4: "No, 25 falls is too few to call it significant. That is why slide 9 treats the drop as an early signal. The unit is collecting 12 months of data, and the comparison in July 2027 will tell us whether it holds." That answer takes about 15 seconds, agrees with the examiner's concern and shows a plan, which is what the question was testing.
Rehearse the Q&A with someone outside the team asking the questions in a random order, and time the answers: 15 to 45 seconds each. In AP Research, College Board specifies 3–4 questions from a panel and your teacher; in the AP Seminar individual task, 2 questions from your teacher, so you can rehearse the full defense several times.
Field variants: nursing, engineering and CS, business, high school and India
The 12-slide outline holds across fields, but each discipline renames the blocks and adds one slide graders expect: nursing capstones add the clinical question and evidence level, engineering adds requirements and verification, business adds the financial case, high-school senior projects add reflection, and Indian final year projects follow the review-and-viva sequence their regulations set.
| Field | What graders expect | Slide to add or rename | Common miss |
|---|---|---|---|
| Nursing and health | An evidence-based practice or quality-improvement project with a clinical question, evidence summary and an outcome measured as a rate | Slide 5 as a PICOT question; slide 4 as an evidence table with levels | Raw counts instead of rates per patient-days; no process measure |
| Engineering | A culminating design that meets requirements under standards and constraints (the ABET wording) | Slide 5 as a requirements table; slide 8 as verification against each requirement | Showing the build in detail but not the test results against requirements |
| Computer science | A working system, its architecture and evidence it works | Slide 6 as an architecture diagram; a demo with a screenshot backup | A 10-minute demo that leaves no time for results |
| Business / MBA | A client problem, analysis and a recommendation with costs and benefits | Slide 10 as the recommendation with a payback or ROI line | Ending on analysis without a decision for the client |
| High-school senior project | A question, the process, the product and what you learned | A reflection slide before the conclusion | A topic report with no question or personal process |
| AP Seminar / Research | An argument built on evidence, then an oral defense | Slide 9 doubles as defense preparation | Planning for 10 minutes when the defense must fit inside the slot |
| Final year project (India) | Introduction, methodology or project work, results and discussion, conclusion and recommendation, then the viva | Slide 11 as conclusion plus recommendation for future work | Reading the report aloud at the final review |
IARE's published scheme shows how that sequence works in practice. Continuous internal assessment (30 marks) averages three reviews: one at the end of the seventh semester, one during the eighth, and one before the report is submitted. The semester-end examination (70 marks) covers the technical paper, the presentation and the final report before a Project Review Committee that includes an examiner nominated by the principal, and a student needs at least 40% of the maximum marks to earn the credits. The presentation rubric asks for slides that contain the introduction, methodology or project work, results and discussion, and conclusion and recommendation, which is the 12-slide outline above under different names. Regulations differ between universities and batch years, so check yours; the review structure is common, the marks are not.
Worked example: a nursing capstone, timed and scored
The worked example below applies every table in this guide to one fictional project: four senior nursing students with a 20-minute slot and 10 minutes of questions, presenting an hourly-rounding project on a medical-surgical unit. Every number is invented for teaching, and every calculation is shown so you can rerun it with your own data.
Baseline (January–June 2026, 181 days). 18 falls over 4,920 patient-days. Rate = 18 ÷ 4,920 × 1,000 = 3.66 falls per 1,000 patient-days. Average census = 4,920 ÷ 181 = 27.2 patients, 85% of 32 beds.
After (August–October 2026, 92 days). 7 falls over 2,510 patient-days. Rate = 7 ÷ 2,510 × 1,000 = 2.79. Average census = 2,510 ÷ 92 = 27.3 patients, again 85% of beds, so the unit was equally busy in both periods.
Change. (3.66 − 2.79) ÷ 3.66 = 0.87 ÷ 3.66 = 23.8% lower. Total events: 18 + 7 = 25 falls, which goes on the slide as n.
Process measure. An audit of rounding logs found 1,280 of 1,520 scheduled rounds documented: 1,280 ÷ 1,520 = 84.2%. This is the evaluation slide: it shows the intervention actually ran, which a grader will ask before believing the outcome.
Time split. Four presenters × 4.5 minutes = 18 minutes, plus a 2-minute buffer = 20. Amara: problem, why it matters and background (3 + 1.5 = 4.5). Daniel: intervention and method (4.5). Priya: results and evaluation (4.5). Lucas: limitations and implications (3.5) and conclusion (1), total 4.5. The cumulative checkpoints are 4:30, 9:00, 13:30 and 18:00.
Self-score before the showcase. The team scored a recorded rehearsal against the five AAC&U criteria on the 1–4 scale: central message 4, organisation 4, supporting material 4, language 3, delivery 3. Total = 4 + 4 + 4 + 3 + 3 = 18 of 20 (90%). The two 3s told them where to spend the last week: replace two unexplained abbreviations, and rehearse the hand-off lines until nobody looks at the slides during them.
Where the falls happened. 11 of the 18 baseline falls (61.1%) happened between 22:00 and 06:00, which is why slide 3 says most falls came when patients got up alone at night. After the change, 3 of 7 (42.9%) did.
The deck that came out of this is the 12-slide outline above, with titles taken from its example column, plus the two extra slides a 20-minute slot allows: a rounding-protocol slide after the method and a falls-by-time-of-day slide after the results, for 14 in total. The results slide figure earlier in this guide is its main results slide.

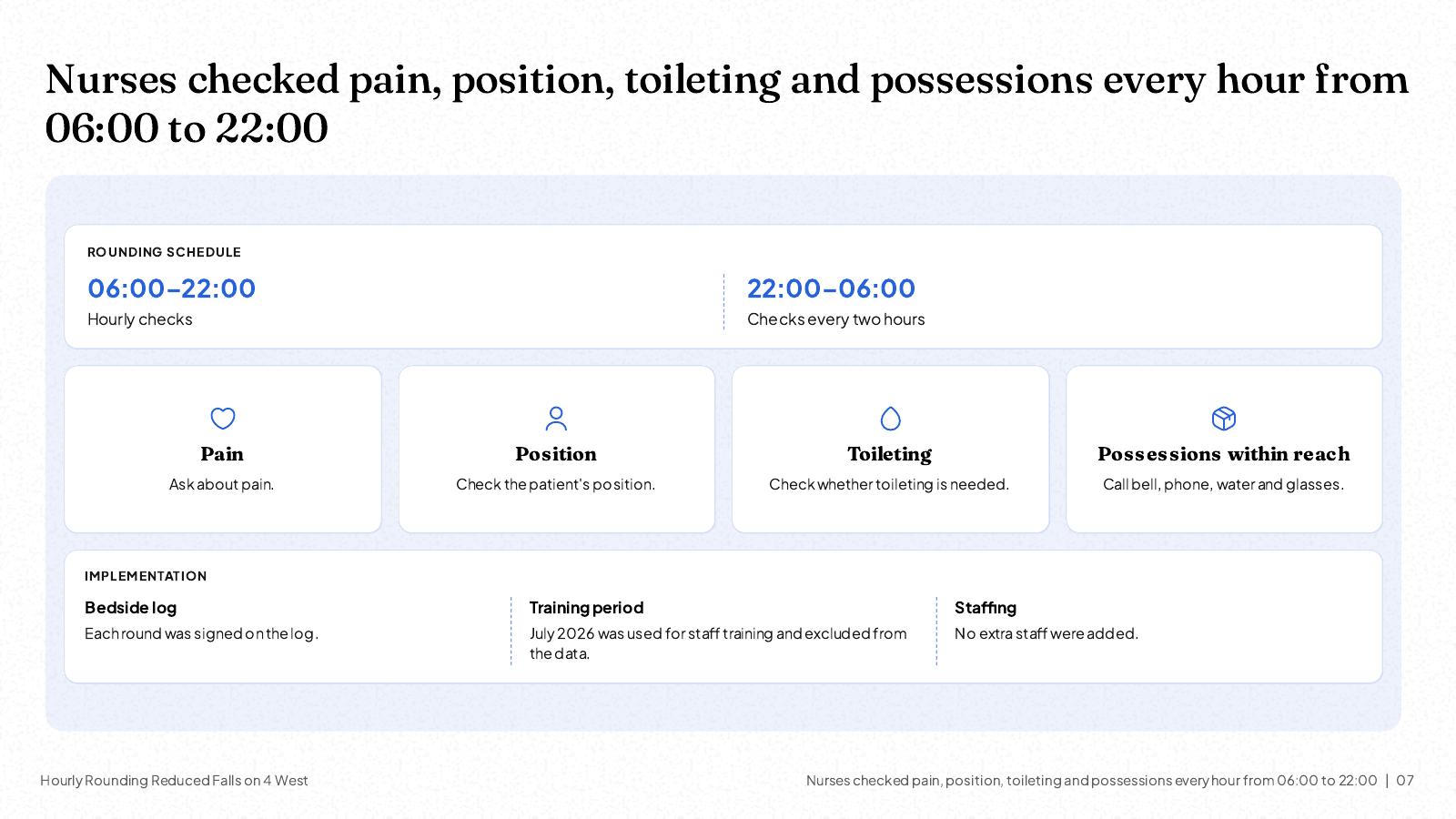

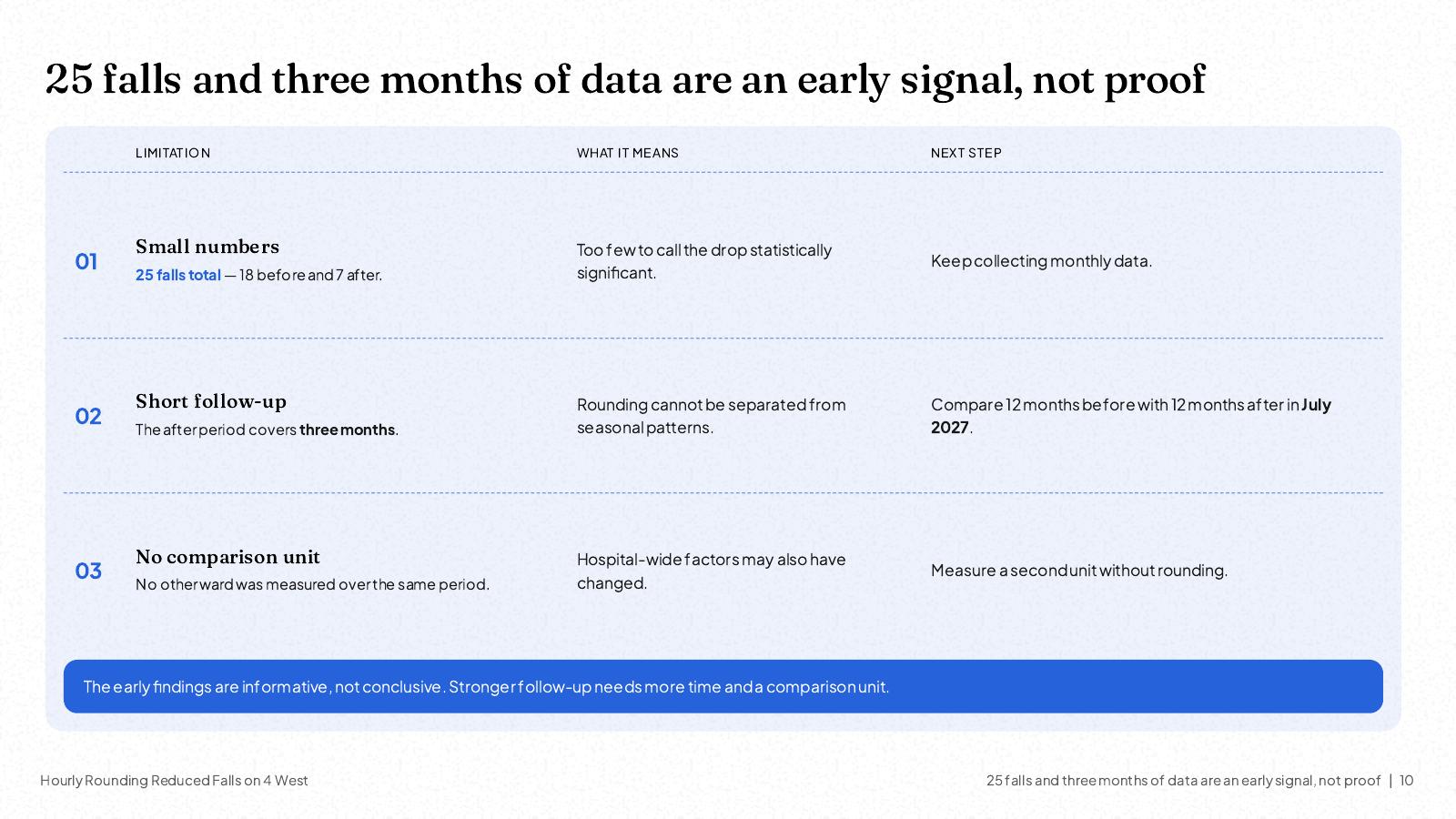

Here are two slides from this article's worked example, as NOXI built them, unedited.
Design for a projector room and a mixed audience
Design a capstone deck for the worst seat in the room: large type, high contrast, one message per slide and figures rebuilt so their labels can be read from the back. Sponsors and second markers decide in seconds whether a slide is worth reading, so a clean slide is part of the supporting-material score, not decoration.
- One message per slide. The claim title is the message; everything else on the slide is evidence for it.
- Rebuild report figures. A chart built for a printed report has small labels and too many series. Keep the comparison that matters, enlarge the labels and highlight the bar or line you are talking about.
- Contrast and colour. Dark text on a light background survives a washed-out projector best. Never rely on colour alone to separate results; label the series directly.
- Logos and templates. Use your university's or sponsor's template if the brief asks for it, and check the logo rules.
- The back-row test. View the deck on a laptop from about two metres away. Anything you cannot read will not be read in the room.
Our presentation accessibility checklist covers contrast, alt text and reading order in detail, which also helps if the deck is submitted with the report.
Using AI for a capstone presentation: check your programme's policy first
Whether you may use AI to build a capstone presentation depends on your programme's policy, and the policy wins over any tool's capabilities. For AP Seminar and AP Research, College Board's policy allows AI as an optional aid for exploring topics, initial source searches, checking understanding of a complex text and checking grammar and tone, but requires students to make their own choices on how to communicate in their writing and presentations.
The AP policy also requires interim checkpoints with the teacher, makes failure to complete them a score of 0 on the task, and gives a team member who breaks the policy on the team multimedia presentation a group score of 0 for that component (College Board, Guidance for Artificial Intelligence Tools and Other Services). If you are an AP student, do not use an AI tool to design or write your AP presentation. Use the guide's tables by hand instead.
University and college capstones vary: some allow AI for formatting and design with a disclosure, some forbid it for assessed work, and many ask you to declare any use. Where it is allowed, the safe pattern is to let AI turn your own report into a first draft of the slides, then check every number, title and claim against the report yourself, and say so if your programme asks. Our guide to turning a PDF report into a presentation with AI explains what to check after conversion.
The three prompts below assume your programme allows it. They work in NOXI or in any AI presentation tool; replace the brackets and keep your report as the single source of numbers.
Create a 12-slide capstone presentation for a [20]-minute slot from the attached [capstone report]. Slide order: title with a one-sentence result, problem with the baseline number, why it matters, background with sources, objective in measurable terms, method or design, results with baseline, after, denominator and n, evaluation of whether the method ran as planned, limitations (three, each with its consequence and next step), implications with a date, conclusion repeating the claim, and a questions slide that keeps the claim visible. Write every slide title as a full-sentence finding. Use only numbers from the report and show the calculation for each rate in a small footer.
This deck will be presented by [4] students: [names]. Split the [20]-minute talk into equal blocks of [4.5] minutes with a [2]-minute buffer, using this order: problem and background, method, results and evaluation, limitations, implications and conclusion. Add a small presenter name in the corner of each slide, and write one hand-off sentence for the end of each block that names the next speaker and what they will show. Do not change any number or slide title.
Add [5] backup slides after the questions slide, one for each of these likely examiner questions: [why this approach and not the alternative], [is the result significant with n = 25], [what else could explain the change], [what would it cost to run on another unit], [what each team member contributed]. Each backup slide gets a claim title that answers the question in one sentence and shows only evidence already in the report. Keep the main 12 slides unchanged.
How to build the capstone deck in NOXI
NOXI turns a capstone report into a structured deck in the style of your programme's template, which you then check line by line against the report. It is free, with no card and no watermark; uploading files needs a free account, and a full deck uses about 25 of the 1,000 monthly credits.
Step 1: Upload your capstone report
Choose Create from file and attach your report as PDF or Word, plus your results spreadsheet as Excel or CSV if you want charts built from your own numbers. NOXI accepts PDF, Word, PowerPoint, Excel, CSV, text and image files up to 200 MB each.
Step 2: Match your programme's template
Choose Match reference and attach your department's PowerPoint template, a previous capstone deck as PPTX or PDF, or a screenshot of one slide. NOXI designs the new deck in that style: colours, typography, layouts and visual rhythm.
Step 3: Review the outline against the timing table
Paste Prompt 1 and choose Plan mode to review the outline before anything is generated. Check the slide count against your slot, rewrite any label titles as claims, then generate and watch each slide being built.
Step 4: Check every number against your report
Compare each baseline, rate and n with the report, edit text right on the slide, and check chart numbers in NOXI's chart data editor. Click any element and tell the AI what to change, or ask for changes to one slide or the whole deck in plain English or Arabic.
Step 5: Add the team split and backup slides
Use Prompt 2 for presenter blocks and hand-off lines and Prompt 3 for Q&A backup slides. Invite teammates by email to edit together in real time, and restore an earlier version if a change goes wrong.
Step 6: Rehearse, export and present
Present full-screen from NOXI to rehearse against the timing table, share a view-only link with your supervisor, and download an editable PowerPoint (.pptx) with real text boxes and embedded fonts, or a PDF, for the room's computer and your submission.
Frequently asked questions
- How long is a capstone presentation?
- Most capstone presentations run 10 to 20 minutes plus 5 to 10 minutes of questions, but your programme's brief sets the length. College Board's official AP timings are 8–10 minutes for the AP Seminar team presentation and defense, 6–8 minutes for the individual presentation, and 15–20 minutes for the AP Research presentation and oral defense. Rehearse to about 90% of the limit.
- How many slides should a capstone presentation have?
- Plan about one slide per minute of the main talk: 10 slides for a 10-minute slot, 12 for 15 minutes and 14 for 20 minutes. The 12-slide outline covers title and claim, problem, why it matters, background, objective, method, results, evaluation, limitations, implications, conclusion and a questions slide. Put extra detail in backup slides after the end.
- What should be included in a capstone presentation?
- Include the problem with its baseline number, why it matters, a one-slide background, a measurable objective, what you built or did, the results with baseline, after, denominator and sample size, whether the method ran as planned, the limitations, what should happen next, and a conclusion that repeats your main claim. Add a demo or prototype slide if your project has one.
- How do you start a capstone presentation?
- Start with the result, not the agenda. Your first slide should carry a one-sentence claim, such as "Hourly rounding cut falls on our unit by about a quarter", followed within the first minute by the problem and its baseline number. Introduce the team in one line, then hand over. Graders who know your central message early can follow the rest.
- What questions are asked in a capstone presentation?
- Examiners usually ask why you chose the problem, why this approach over the alternative, how you measured success, how big the sample was, what else could explain the result, what went wrong, what you personally contributed, how it would scale or what it costs, how it connects to your studies, and what should happen next. Answer each in three parts: direct answer, evidence, implication.
- What is the difference between a capstone and a thesis?
- A capstone applies what you learned to a practical problem, often in a team and sometimes for a sponsor, and is judged on whether the solution worked. A thesis is an individual piece of original research, read in full by a committee and defended for its contribution and methods. Capstone talks therefore spend more time on what was built and its results, and less on literature.
- How is a capstone presentation graded?
- Most programmes use their own rubric covering content, organisation, delivery, use of evidence and the question session. The public AAC&U Oral Communication VALUE rubric scores organisation, language, delivery, supporting material and central message on four levels, the top one named Capstone. One Indian college's project rubric gives Q&A 30 of 100 marks. Map each criterion to the slide that earns it.
- How do you split a group capstone presentation?
- Give each presenter roughly equal time on a block they own, in the order of the talk: for example, four presenters with 4.5 minutes each and a 2-minute buffer in a 20-minute slot. Script a one-sentence hand-off at the end of each block, and divide the Q&A by topic, with one person repeating each question and passing it to the teammate who owns that topic.
- Can I use AI to make my capstone presentation?
- Only if your programme's policy allows it. College Board's AP policy lets AP Seminar and AP Research students use AI for exploration, initial source searches, checking understanding and grammar, but requires them to make their own choices on how to communicate in presentations. Where AI is allowed, use it to draft slides from your own report, check every number yourself and disclose the use if asked.
Sources & methodology
How this guide was made: the AP timings, weights, deadlines, diploma requirements and AI policy come from College Board's own pages; the rubric criteria and level names from AAC&U's published Oral Communication VALUE rubric; the engineering capstone and communication requirements from ABET's 2026–2027 criteria; the Indian review sequence and presentation weights from one college's published guidelines (IARE), which are an example and not a national standard; and the claim-title practice from a Portland State capstone brief and Penn State's assertion-evidence site. The timing table, the 12-slide outline, the rubric map, the team plan, the Q&A list and the field table are editorial recommendations, not a standard. Northfield University, Lakeview General Hospital, the team and all their figures are fictional; every calculation was checked by hand. All sources were checked on 15 October 2026.
- [1] AP Seminar components, weights (20%, 35%, 45%), team presentation and defense of 8–10 minutes, individual presentation of 6–8 minutes, oral defense of 2 teacher questions, teams of 3–5, task deadline 30 April 2027 and exam on 10 May 2027 — College Board, AP Seminar: Assessment.
- [2] AP Research presentation and oral defense of 15–20 minutes worth 25%, 3–4 questions from a panel and the teacher, academic paper of 4,000–5,000 words worth 75%, deadline 30 April 2027 — College Board, AP Research: Assessment.
- [3] AP Capstone as a diploma programme based on two yearlong courses; AP Capstone Diploma and AP Seminar and Research Certificate requirements — College Board, AP Capstone.
- [4] Permitted uses of generative AI in AP Seminar and AP Research, students' own choices on how to communicate in presentations, checkpoints and the score of 0 for missed checkpoints or a team member's breach — College Board, Guidance for Artificial Intelligence Tools and Other Services.
- [5] Five oral communication criteria, the Capstone, Milestones and Benchmark levels, and institutional (not grading) use of the VALUE rubrics — AAC&U, Oral Communication VALUE Rubric.
- [6] Culminating major engineering design experience with standards and multiple constraints; the ability to communicate effectively with a range of audiences — ABET, Criteria for Accrediting Engineering Programs, 2026–2027.
- [7] 15 minutes per team, slide titles that say what is important, content elements not used as titles, non-presenting members ready to answer at the front — Portland State University, ME 493 Capstone Design Showcase brief (2018).
- [8] B.Tech project assessment: continuous internal assessment of 30 marks over three reviews, semester-end examination of 70 marks, Project Review Committee with a nominated examiner, 40% minimum, presentation rubric of engagement 20, presentation skills 30, content 20 and Q&A 30 — Institute of Aeronautical Engineering (IARE), B.Tech Project Work Evaluation / Assessment Guidelines (2020).
- [9] Assertion-evidence approach: talks built on succinct messages rather than phrase topics, edited by Michael Alley at Penn State — Penn State Leonhard Center, The Assertion-Evidence Approach.
- [10] Hospital fall rates expressed per 1,000 bed-days, with studies finding 3–5 falls per 1,000 bed-days — AHRQ Patient Safety Network, Falls primer (updated June 2024).
Build your capstone deck in NOXI, free: upload your report, match your programme's template, and export an editable PowerPoint or PDF for the showcase.
